MR7621  (USB HID interface & keyboard simulator, Read card only, Programable)
Loading...
  •
  • Overview
MR7621 series desktop contactless IC card reader is based on NXP series RF chip with high performance MCU. The communication is according to USB HID standard. There are 2 USB devices to implement the functions. One is USB keyboard for DATA output. The other is USB compliant device for DATA output format configuration and ISP function. The DATA output format is very flexible. The reader could output any sector any byte in any format. TransConfig, the configuration tool is very easy to use to load the configuration file to reader. The configuration file is easy to build. Please to read “JINMUYU USB HID Keyboard Simulator IC Card Reader General Technical Manual.pdf” to build the configuration files. And we will help you to make the configuration file.
The reader supports the IC card according to ISO14443A, ISO14443B and ISO15693 standard.
  • Main Characteristics
  • USB HID keyboard simulator data output
  • Data output format is very flexible
  • RF interface and protocol process with EMV2010 LEVEL 1 certification ability
  •
  • Technical parameters
  • PCD: NXP MF RC500, MF RC531, SL RC400, CL RC632
  • Working frequency: 13.56MHz
  • RF protocol: ISO14443A, ISO14443B
  • Operating distance: 90mm (MIFARE One, typical)
  • Display: 1 tricolor LED
  • Buzzer: Build in
  • Interface: dual port, USB HID keyboard simulator and USB HID compliant device
  • Power supply: DC5V ± 10%
  • Power consumption: 0.9W

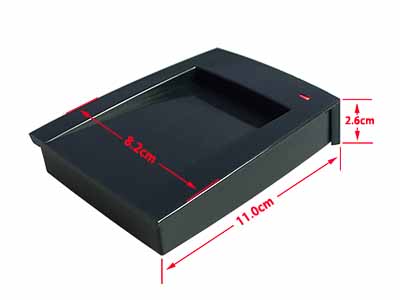

  • Dimension: 110mm * 80mm * 26mm
  • Weight: about 100g
  • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
  • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
  • PC software: no need, direct output to editor
  • ISP: Terms
  • RoHS: By order
  •
Model NO. MR7621UA MR7621UC MR7621UG MR7621UH
Interface dual port, USB HID keyboard simulator and USB HID compliant device
PCD NXP MF RC500 NXP MF RC531 NXP MF RC400 NXP MF RC632
Display 1 tricolor LED
Buzzer Build in
RF Standard ISO14443A
ISO14443A
ISO14443B
ISO15693
ISO14443A
ISO14443B
ISO15693
Reading distance 90mm (MIFARE one typical)
PICC



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultra Light EV1
MIFARE Mini
MIFARE Plus Level 1
T=CL TYPE A



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultra Light EV1
MIFARE Mini
MIFARE Plus Level 1
T=CL TYPE A

T=CL TYPE B



I.CODE SLI
I.CODE SLI-S
TI Tag-it series
ST LRI series
Other ISO15693 tags



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultra Light EV1
MIFARE Mini
MIFARE Plus Level 1
T=CL TYPE A

T=CL TYPE B

I.CODE SLI
I.CODE SLI-S
TI Tag-it series
ST LRI series
Other ISO15693 tags
