MR800  (Compatible USB PCSC Interface)
Loading...
  • Video

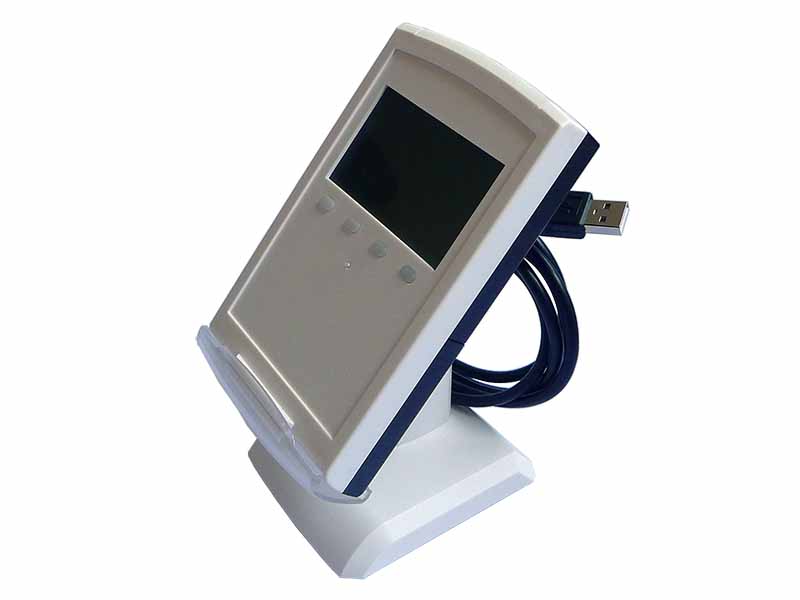

  • MR800 is a very good Contactless IC Card RFID Reader, it has a clean and simple design and has a gorgeous 4 color LED lights. At the same time you can also design your own Logo on the Reader.
  •
  • MR800 video display (RAR)
  •
  • Overview
MR800 series desktop contactless IC card reader/writer is base on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4 contactless CPU card. The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816. It has 128 * 64 pixel LCD displayer, and advantage firmware providing very high card process speed. The RF interface and protocol process is with EMV2010 LEVEL 1 certification ability.
  • Main Characteristics
  • 128 * 64 pixel LCD displayer
  • Compatible USB PC/SC interface
  • High speed MCU and advantage firmware provide very high card process speed
  • RF protocol process with EMV2010 LEVEL 1 certification ability
  • Terms many kind of card/tag
  •
  • Technical parameters
  • PCD: NXP MF RC531, CL RC632
  • Working frequency: 13.56MHz
  • RF standard: ISO14443A, ISO14443B, ISO15693
  • Operating distance: 100mm (MIFARE One, typical)
  • SAM card slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
  • Display: 4 LED + LCD (128 * 64 pixel)
  • Buzzer: Build in
  • Interface: USB PC/SC compatible
  • Power supply: DC5V ± 10%
  • Power consumption: 0.9W
  • Dimension: 142mm * 86mm * 22mm
  • Weight: About 200g
  • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
  • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
  • PC software: PTransWin
  • SDK: Base on Windows, free
  • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
  • ISP: Terms
  • RoHS: By order
  •
Model NO. MR800UCN MR800UCV MR800UHN MR800UHV

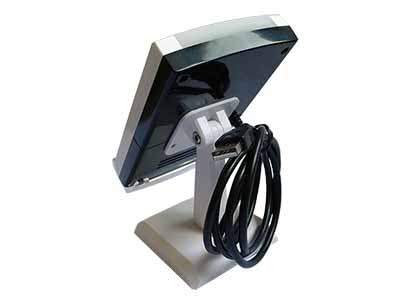

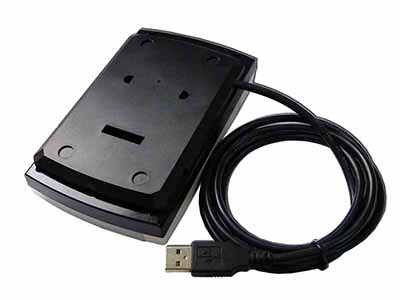

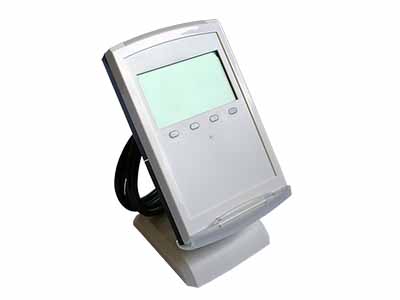

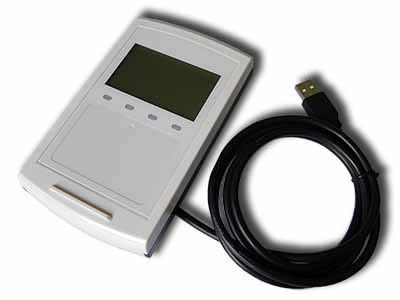

The form of shell horizontal vertical horizontal vertical
Interface USB PC/SC compatible
MCU ARM7 NXP LPC2368 at 60MHz, 512KB FLASH + 64KB RAM
PCD NXP MF RC531 NXP CL RC632
SAM card slot 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
Date storage 3072K bytes, 512bytes/block
Display 4 LED + LCD (128 * 64 pixel)
Buzzer yes
RF standard
ISO14443A
ISO14443B
ISO14443A
ISO14443B
ISO15693
Reading distance 100mm (MIFARE one, typical)
PICC



MIFARE 1K
MIFARE 4K
FM11RF08
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B

ISO7816 T=0
ISO7816 T=1



MIFARE 1K
MIFARE 4K
FM11RF08
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B

NXP I.CODE SLI
TI Tag_it HF-I
ST LRI

ISO7816 T=0
ISO7816 T=1
