Smart Reader

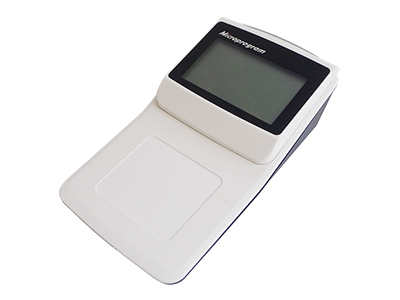

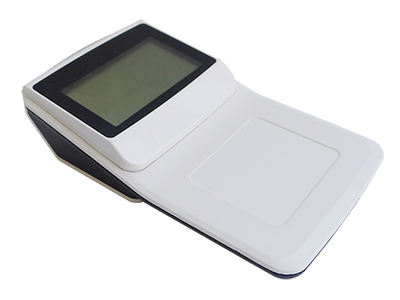

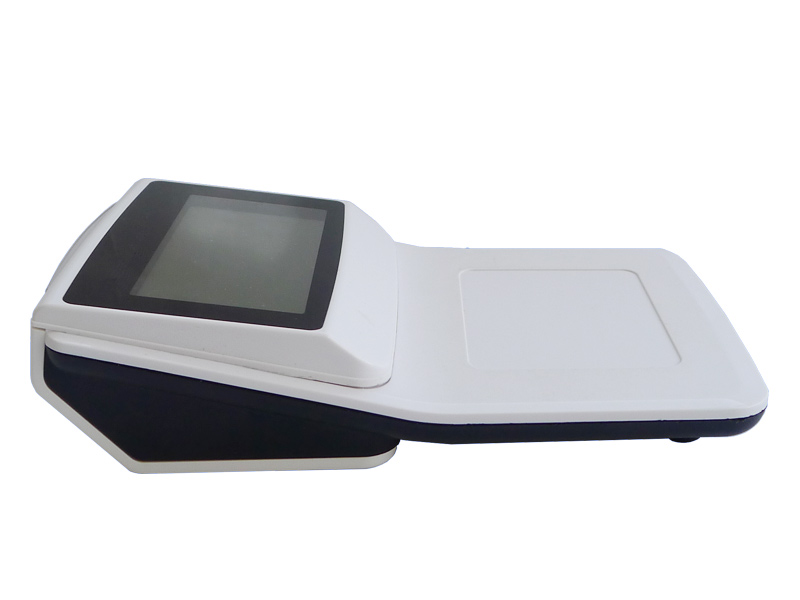

MR880 (Compatible USB PCSC Interface)
-
Overview
MR880 series desktop contactless IC card reader is based on NXP series RF chip with high performance STM32 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4 contactless CPU card. The RF interface and protocol process is with EMV2010 LEVEL 1 certification ability.

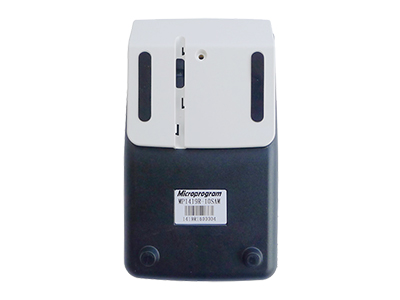

The reader builds in 4 SAM slots, and fully supports SAM according to ISO7816.
The reader builds in 4 SAM slots, and fully supports SAM according to ISO7816.
-
Main Characteristics
- • 240 * 128 pixel LCD displayer
- • 16 pixel, 24 pixel or 32 pixel Font available
- • Chinese, English or Russian Font available
- • Compatible USB PC/SC interface
- • 120MHz High speed MCU and advantage firmware provide very high card process speed
- • RF protocol process with EMV2010 LEVEL 1 certification ability
-
Technical parameters
- • PCD: CL RC663
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
- • Operating distance: 100mm (MIFARE One, typical)
- • SAM slot: 4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 230400bps)
- • Display: 4 LED(Red,Yellow,Blue,Green) + LCD (240 * 128 pixel)
- • Buzzer: Build in
- • RTC: Yes
- • Interface: USB PC/SC compatible
- • Power supply: DC2.5V~12V
- • Power consumption: 0.9W
- • Dimension: 158mm * 92mm * 42mm
- • Weight: About 220g
- • Operating temperature: -25 ~ +85 ℃
- • Storage temperature: -40 ~ +125 ℃
- • PC software: PCSC, download from http://www.jinmuyu.com
- • Sample code: VC
- • ISP: Support
- • RoHS: Compliant
| Datasheet | |
| SDK&Sample Code | |
| PCSC Communication Tool | |
| Windows USB driver (CCID) | |
| Model NO. | MR880UH | ||||||||||||||||||||||||||||||
| PCD | CL RC663 | ||||||||||||||||||||||||||||||
| Interface | USB PC/SC compatible | ||||||||||||||||||||||||||||||
| SAM card slot | 4 slots | ||||||||||||||||||||||||||||||
| Display | 4 LED(Red,Yellow,Blue,Green) | ||||||||||||||||||||||||||||||
| Buzzer | Build in | ||||||||||||||||||||||||||||||
| RF standard |
|
||||||||||||||||||||||||||||||
| Reading distance | 100mm (MIFARE one, typical) | ||||||||||||||||||||||||||||||
| PICC |
|
||||||||||||||||||||||||||||||
