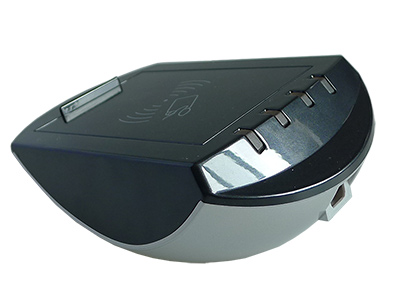

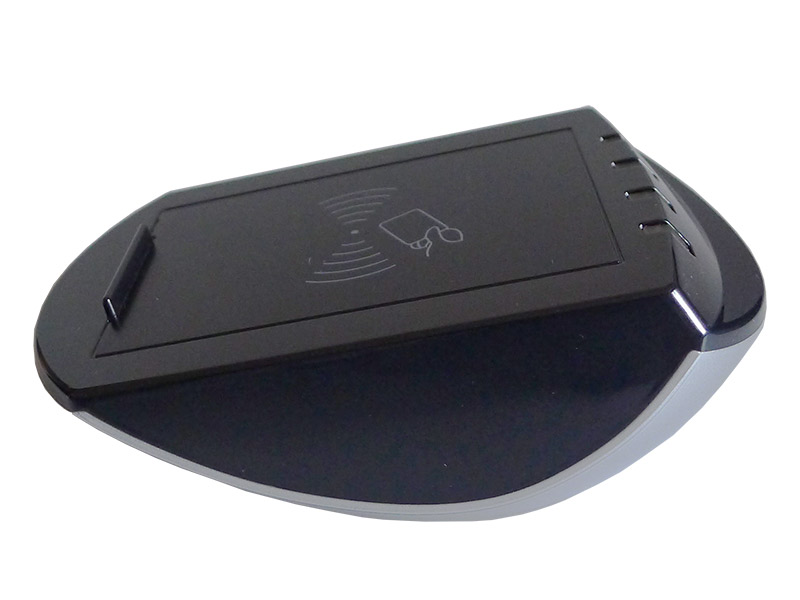

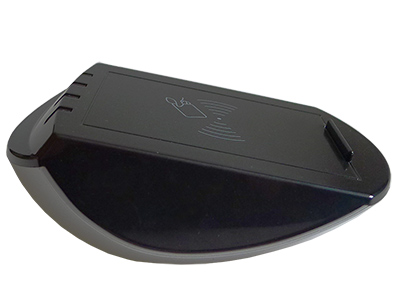

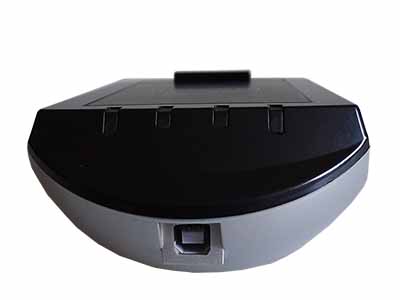

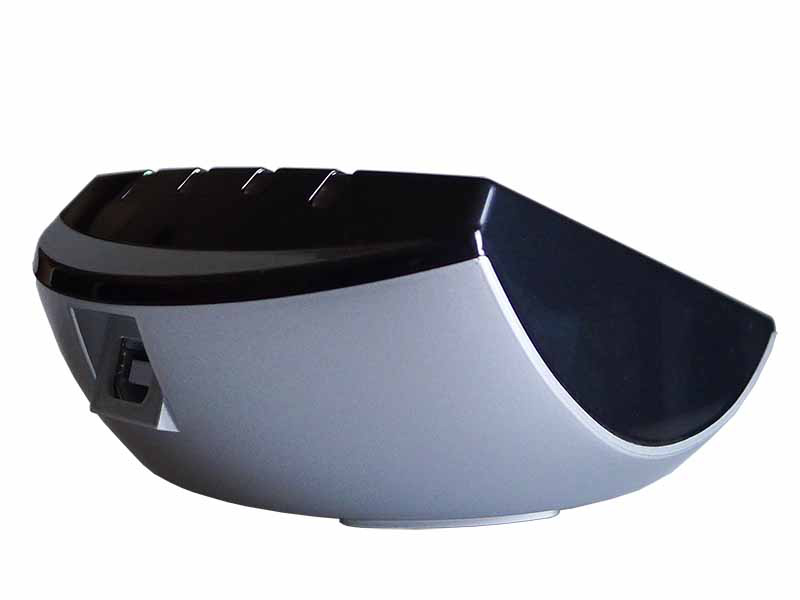

MR7911 (Standard USB PCSC Interface)
-
Overview
MR7911 is the standard USB PC/SC interface with 4 SAM slots fully termsing SAM according to ISO7816, and also compatible with many PC/SC readers in the market. It has high speed MCU and advantage firmware providing very high card process speed. Its' RF interface and protocol process with EMV2010 LEVEL 1 certification ability.
It is based on NXP series RF chip with high performance. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443, especially completely supports ISO14443-4 contactless CPU card.
It is based on NXP series RF chip with high performance. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443, especially completely supports ISO14443-4 contactless CPU card.
-
Main Characteristics
- • True USB PC/SC interface, compatible with many PC/SC readers in the market
- • High speed MCU and advantage firmware provide very high card process speed
- • RF interface and protocol process with EMV2010 LEVEL 1 certification ability
-
Technical parameters
- • PCD: NXP MF RC531
- • Working frequency: 13.56MHz
- • RF protocol: ISO14443A, ISO14443B
- • Operating distance: 100mm (MIFARE One, typical)
- • SAM slots: 4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 115200bps)
- • Display: 4 LEDs, blue, yellow, green, red
- • Buzzer: Build in
- • Interface: USB PC/SC standard
- • Power supply: DC5V ± 10%
- • Power consumption: 0.9W

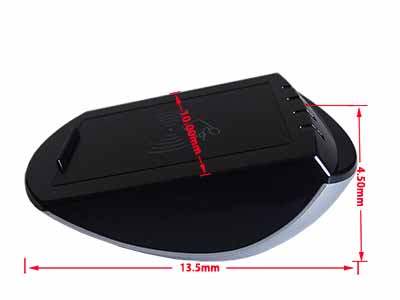

- • Dimension: 135mm * 100mm * 45mm
- • Weight: About 100g
- • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
- • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
- • Demo Software: PCSC Communication Tool
- • SDK: Base on Windows, free
- • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
- • ISP: Support
- • RoHS: By order
| Datasheet | |
| SDK&Sample Code | |
| Demo Software | |
| CCID Driver | |
| Model NO. | MR7911UC | |||||||||||||
| Interface | USB PC/SC Standard | |||||||||||||
| PCD | NXP MF RC531 | |||||||||||||
| SAM card slot | 4 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps) | |||||||||||||
| Display | 4 LEDs, blue, yellow, green, red | |||||||||||||
| Buzzer | yes | |||||||||||||
| RF Standard |
|
|||||||||||||
| Operating distance | 100mm (MIFARE One, typical) | |||||||||||||
| PICC |
|
