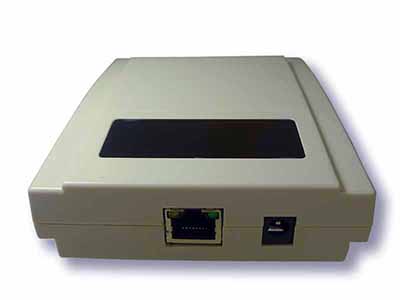

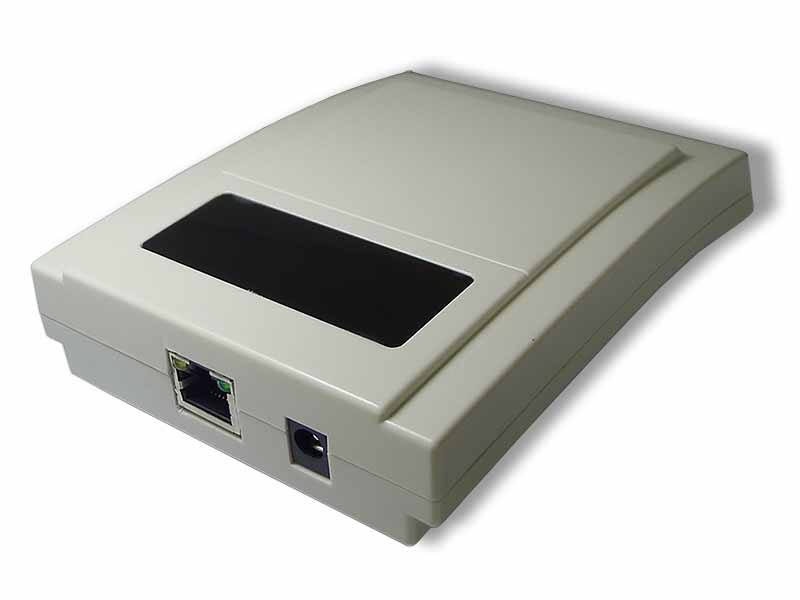

MR730 (Master Reader Classic, Ethernet)
MR730 series desktop contactless IC card reader/writer is base on NXP series RF chip. The communication port is Ethernet. The reader fully supports the IC card according to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4 contactless CPU card. The reader builds in SAM slot, and supports SAM according to ISO7816 (Max. 115200bps).
-
Main Characteristics
- • Ethernet interface
- • High speed MCU and advantage firmware provide very high card process speed
- • Full function PC software
-
Technical parameters
- • PCD: NXP CLRC66302
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
- • Operating distance: 80mm (MIFARE One, typical)
- • SAM slot: 1 slot, support ISO7816 (T=0 & T=1, support PPS, Max. 115200bps)
- • Interface: Ethernet RJ45
- • Baud rate: 9600 ~ 115200 BPS
- • Power supply: POE or AC adaptor DC5V
- • Power consumption: 1.5W
- • Dimension: 141mm * 100mm * 31mm
- • Weight: about 100g
- • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
- • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
- • PC software: TransWin
- • SDK: Base on Windows, free
- • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
- • ISP: Supports
- • RoHS: By order
| Datasheet |
|
|
|
|
|
| SDK&Sample Code |
|
|
|
| PC Software |
|
|
|
| Model NO. |
MR730EA(Stop) |
MR730EC(Stop) |
MR730EG(Stop) |
MR730EH |
| Interface |
RJ45 (Ethernet) |
| PCD |
RC500 |
RC531 |
RC400 |
CLRC66302 |
| SAM card slot |
1 slot, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps) |
| Buzzer |
yes |
| RF Standard |
ISO14443A |
|
ISO15693 |
|
ISO14443A
|
|
ISO14443B
|
|
ISO15693
|
|
| Reading distance |
80mm (MIFARE One, typical) |
| PICC |
|
MIFARE 1K |
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE ProX |
| T=CL TYPE A |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
MIFARE 1K |
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
NXP I.CODE SLI |
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
MIFARE 1K |
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| NXP I.CODE SLI |
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
