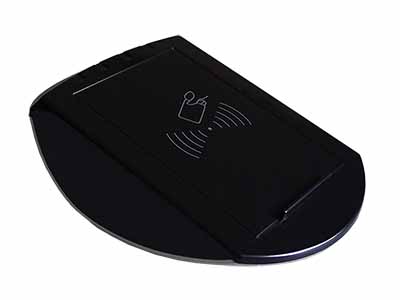

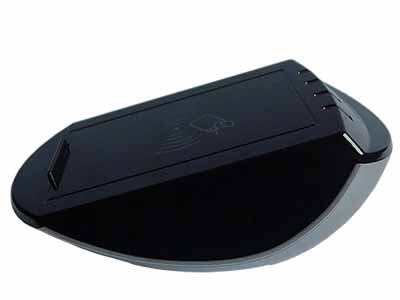

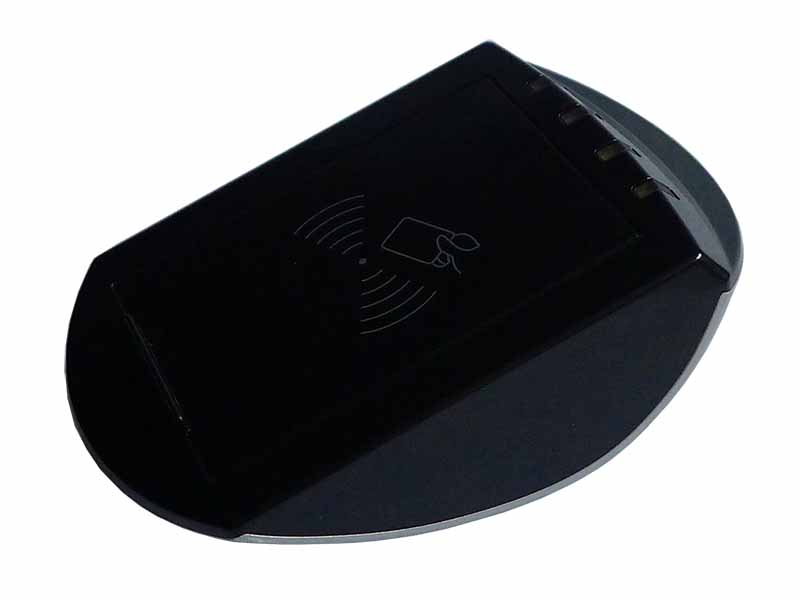

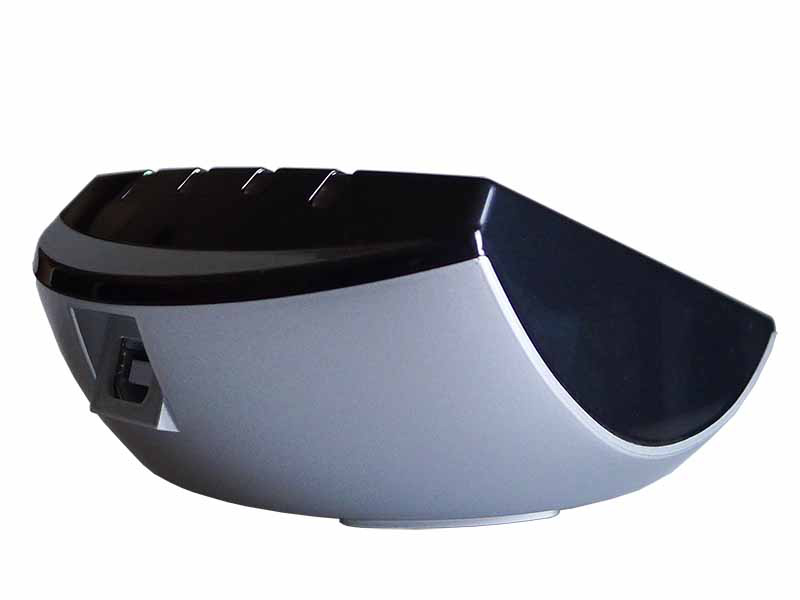

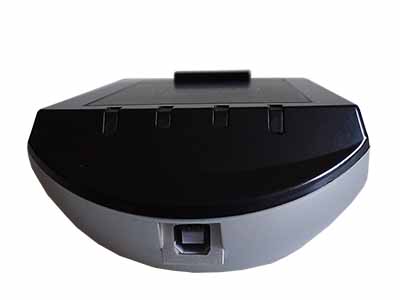

MR7911 (Standard USB PCSC Interface)
MR7911 is the standard USB PC/SC interface with 4 SAM slots fully supporting SAM according to ISO7816,et également compatible avec de nombreux lecteurs PC / SC dans le marché.
Il a les avantages de la haute vitesse MCU et cartes de firmware offrent très grande vitesse de traitement.
Il est basé sur la série NXP puce RF à haute performance.La communication est selon l'USB PC standard / SC.Entièrement compatible avec le lecteur de carte à puce en conformité avec ISO14443, ISO14443-4 entièrement pris en charge, en particulier sans contact carte CPU.
paramètres techniques
- • PCD: NXP MF RC531
- • fréquence de travail: 13.56MHz
- • norme RF: ISO14443A, ISO14443B
- • La distance de fonctionnement: 100mm (MIFARE One, typical)
- • fente SAM: 4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 115200bps)
- • exposition: 4 LEDs, blue, yellow, green, red
- • ronfleur: interne
- • interface: USB PC/SC standard
- • source de courant: DC5V ± 10%
- • puissance: 0.9W

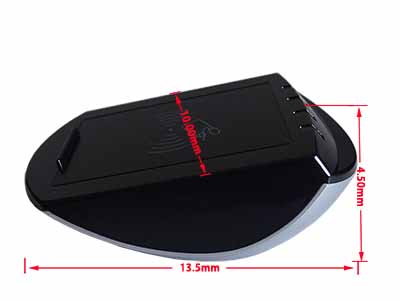

- • dimension: 135mm * 100mm * 45mm
- • poids: sur 100g
- • Température de fonctionnement: -25 ~ +85 ℃ (-77 ~ +185°F)
- • Température de stockage: -40 ~ +125 ℃ (-104 ~ +257°F)
- • Logiciel PC: PCSC outil de communication
- • SDK: Basé sur Windows, fournir gratuitement
- • Exemple de code: VC, VB, C++ Builder, DELPHI, Power Builder
- • ISP: soutien
- • RoHS: conformité
-
Model NO. |
MR7911UC |
Interface |
USB PC/SC Standard |
PCD |
NXP MF RC531 |
SAM card slot |
4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 115200bps) |
Display |
4 LEDs, blue, yellow, green, red |
Buzzer |
yes |
RF Standard |
|
Operating distance |
100mm (MIFARE One, typical) |
PICC |
MIFARE 1K |
MIFARE 4K |
MIFARE Ultralight |
MIFARE Mini |
MIFARE DESfire |
MIFARE Plus |
T=CL TYPE A |
|
T=CL TYPE B |
|
ISO7816 T=0 |
ISO7816 T=1 |
|
|
